时间卷积网络¶

在本 Notebook 中，我们将展示如何使用 darts 实现 TCN。

[1]:

# fix python path if working locally
from utils import fix_pythonpath_if_working_locally

fix_pythonpath_if_working_locally()

[2]:

%matplotlib inline

import warnings

import matplotlib.pyplot as plt
import pandas as pd

from darts import TimeSeries, concatenate
from darts.dataprocessing.transformers import Scaler
from darts.datasets import AirPassengersDataset, EnergyDataset, SunspotsDataset
from darts.models import TCNModel
from darts.utils.callbacks import TFMProgressBar
from darts.utils.missing_values import fill_missing_values
from darts.utils.timeseries_generation import datetime_attribute_timeseries

warnings.filterwarnings("ignore")

import logging

logging.disable(logging.CRITICAL)


def generate_torch_kwargs():
    # run torch models on CPU, and disable progress bars for all model stages except training.
    return {
        "pl_trainer_kwargs": {
            "accelerator": "cpu",
            "callbacks": [TFMProgressBar(enable_train_bar_only=True)],
        }
    }

航空旅客数据集¶

[3]:

# Read data:
ts = AirPassengersDataset().load()

# Create training and validation sets:
train, val = ts.split_after(pd.Timestamp("19580801"))

scaler = Scaler()

train_scaled = scaler.fit_transform(train)
val_scaled = scaler.transform(val)
ts_scaled = scaler.transform(ts)

# We'll use the month as a covariate (scaling not required as one-hot-encoded)
month_series = datetime_attribute_timeseries(ts, attribute="month", one_hot=True)

在以下单元格中，我们将构建一个 TCNModel。稍后，当我们训练它时，模型将把其内部输入宽度初始化为 2，因为我们有一个时间序列维度和另一个协变量月度时间序列维度（尽管这对我们是透明的）。此外，由于我们稍后想要模拟未来 6 个月的历史预测，我们必须确保 TCNModel 实例的 output_chunk_length 参数值至少为 6。

如果我们不指定 num_layers 参数，它将自动选择一个最小值，以确保输出中的每个条目都能覆盖完整的历史信息，即每个输出都将依赖于整个输入。

[4]:

model_name = "TCN_air"
model_air = TCNModel(
    input_chunk_length=13,
    output_chunk_length=12,
    n_epochs=500,
    dropout=0.1,
    dilation_base=2,
    weight_norm=True,
    kernel_size=5,
    num_filters=3,
    random_state=0,
    save_checkpoints=True,
    model_name=model_name,
    force_reset=True,
    **generate_torch_kwargs(),
)

[5]:

model_air.fit(
    series=train_scaled,
    past_covariates=month_series,
    val_series=val_scaled,
    val_past_covariates=month_series,
)

[5]:

TCNModel(kernel_size=5, num_filters=3, num_layers=None, dilation_base=2, weight_norm=True, dropout=0.1, input_chunk_length=13, output_chunk_length=12, n_epochs=500, random_state=0, save_checkpoints=True, model_name=TCN_air, force_reset=True, pl_trainer_kwargs={'accelerator': 'cpu', 'callbacks': [<darts.utils.callbacks.TFMProgressBar object at 0x2b00e2a40>]})

我们将从在验证集上表现最佳的检查点加载模型。

[6]:

model_air = TCNModel.load_from_checkpoint(model_name=model_name, best=True)

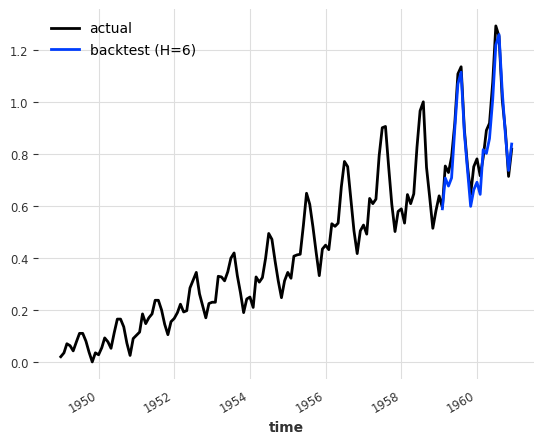

让我们看看 6 个月预测的结果

[7]:

backtest = model_air.historical_forecasts(
    series=ts_scaled,
    past_covariates=month_series,
    start=val_scaled.start_time(),
    forecast_horizon=6,
    retrain=False,
    verbose=True,
)

[8]:

ts_scaled.plot(label="actual")
backtest.plot(label="backtest (H=6)")

[8]:

<Axes: xlabel='time'>

../_images/examples_05-TCN-examples_12_1.png

月度太阳黑子¶

让我们在一个更复杂、更大得多的数据集上尝试使用 TCNModel。

[9]:

series_sunspot = SunspotsDataset().load()

train, val = series_sunspot.split_after(pd.Timestamp("19401001"))

scaler = Scaler()

train_sp_transformed = scaler.fit_transform(train)
val_sp_transformed = scaler.transform(val)
series_sp_transformed = scaler.transform(series_sunspot)

[10]:

model_name = "TCN_sun"
model_sun = TCNModel(
    input_chunk_length=250,
    output_chunk_length=36,
    n_epochs=100,
    dropout=0,
    dilation_base=2,
    weight_norm=True,
    kernel_size=3,
    num_filters=6,
    nr_epochs_val_period=1,
    random_state=0,
    save_checkpoints=True,
    model_name=model_name,
    force_reset=True,
    **generate_torch_kwargs(),
)

[11]:

model_sun.fit(train_sp_transformed, val_series=val_sp_transformed)

[11]:

TCNModel(kernel_size=3, num_filters=6, num_layers=None, dilation_base=2, weight_norm=True, dropout=0, input_chunk_length=250, output_chunk_length=36, n_epochs=100, nr_epochs_val_period=1, random_state=0, save_checkpoints=True, model_name=TCN_sun, force_reset=True, pl_trainer_kwargs={'accelerator': 'cpu', 'callbacks': [<darts.utils.callbacks.TFMProgressBar object at 0x176bcc790>]})

[12]:

model_sun = TCNModel.load_from_checkpoint(model_name=model_name, best=True)

[13]:

backtest_sp = model_sun.historical_forecasts(
    series_sp_transformed,
    start=val_sp_transformed.start_time(),
    forecast_horizon=12,
    stride=12,
    last_points_only=False,
    retrain=False,
    verbose=True,
)
backtest_sp = concatenate(backtest_sp)

[14]:

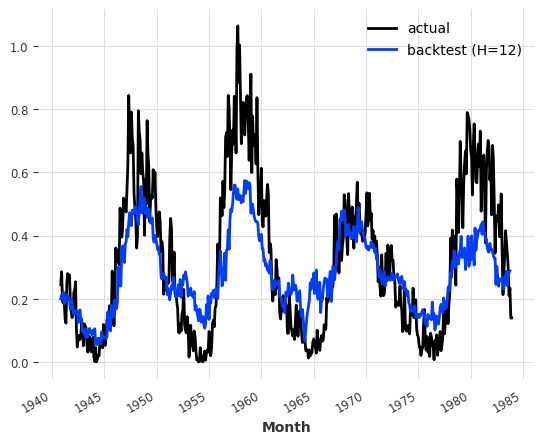

val_sp_transformed.plot(label="actual")
backtest_sp.plot(label="backtest (H=12)")
plt.legend()

[14]:

<matplotlib.legend.Legend at 0x288b5d720>

../_images/examples_05-TCN-examples_19_1.png

日发电量¶

[15]:

df3 = EnergyDataset().load().to_dataframe()
df3_day_avg = (
    df3.groupby(df3.index.astype(str).str.split(" ").str[0]).mean().reset_index()
)
series_en = fill_missing_values(
    TimeSeries.from_dataframe(
        df3_day_avg, "time", ["generation hydro run-of-river and poundage"]
    ),
    "auto",
)

# create train and test splits
train_en, val_en = series_en.split_after(pd.Timestamp("20170901"))

# scale the data
scaler_en = Scaler()
train_en_transformed = scaler_en.fit_transform(train_en)
val_en_transformed = scaler_en.transform(val_en)
series_en_transformed = scaler_en.transform(series_en)

# add the day as a covariate (scaling not required as one-hot-encoded)
day_series = datetime_attribute_timeseries(
    series_en_transformed, attribute="day", one_hot=True
)

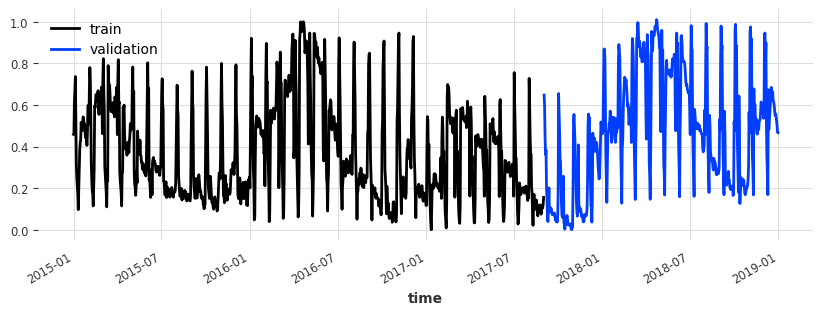

plt.figure(figsize=(10, 3))
train_en_transformed.plot(label="train")
val_en_transformed.plot(label="validation")

[15]:

<Axes: xlabel='time'>

../_images/examples_05-TCN-examples_21_1.png

[16]:

model_name = "TCN_energy"
model_en = TCNModel(
    input_chunk_length=365,
    output_chunk_length=7,
    n_epochs=50,
    dropout=0.2,
    dilation_base=2,
    weight_norm=True,
    kernel_size=5,
    num_filters=8,
    nr_epochs_val_period=1,
    random_state=0,
    save_checkpoints=True,
    model_name=model_name,
    force_reset=True,
    **generate_torch_kwargs(),
)

[17]:

model_en.fit(
    series=train_en_transformed,
    past_covariates=day_series,
    val_series=val_en_transformed,
    val_past_covariates=day_series,
)

[17]:

TCNModel(kernel_size=5, num_filters=8, num_layers=None, dilation_base=2, weight_norm=True, dropout=0.2, input_chunk_length=365, output_chunk_length=7, n_epochs=50, nr_epochs_val_period=1, random_state=0, save_checkpoints=True, model_name=TCN_energy, force_reset=True, pl_trainer_kwargs={'accelerator': 'cpu', 'callbacks': [<darts.utils.callbacks.TFMProgressBar object at 0x2bc722440>]})

[18]:

model_en = TCNModel.load_from_checkpoint(model_name=model_name, best=True)

[19]:

backtest_en = model_en.historical_forecasts(
    series=series_en_transformed,
    past_covariates=day_series,
    start=val_en_transformed.start_time(),
    forecast_horizon=7,
    stride=7,
    last_points_only=False,
    retrain=False,
    verbose=True,
)
backtest_en = concatenate(backtest_en)

[20]:

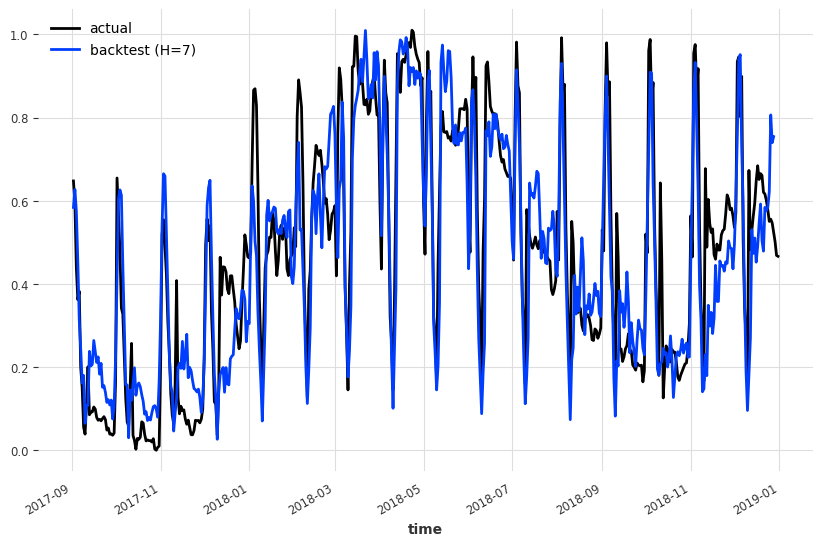

plt.figure(figsize=(10, 6))
val_en_transformed.plot(label="actual")
backtest_en.plot(label="backtest (H=7)")
plt.legend()

[20]:

<matplotlib.legend.Legend at 0x2bc3c3970>

../_images/examples_05-TCN-examples_26_1.png

[ ]:
